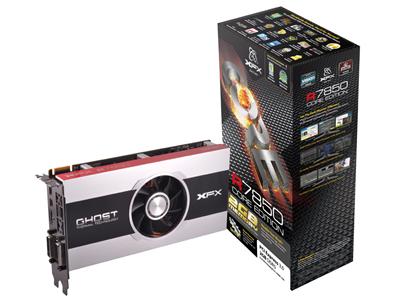

XFX AMD Radeon 7850 HD 860MHz 2GB PCI-Express 3.0 HDMI Core Edition (FX-785A-CNJC)

Quicklinx:	89S7WS00
Mfr#:	FX-785A-CNJC

Description

The AMD Radeon HD 7800 series is the upgrade gamers deserve. Based on the GCN architecture, these cards are engineered for supremacy with the industry's very first 28 nm GPU design. Packed with incredible features, such as support for PCI Express 3.0, the ultra-efficient AMD ZeroCore Power technology and gaming at resolutions up to 7680 x 3200 with AMD Eyefinity technology, serious gaming starts here.

Features

Ghost Thermal technology
Ghost Thermal technology is a floating cover design that maximizes airflow by creating exceptional venting through and out the card.
Double Dissipation technology
Double Dissipation technology is unique dual fan design that allows cool all the heatsinks, components and the PCB board.

Specifications

Summary

Product Description: XFX Radeon HD 7850 - Core Edition - graphics card - Radeon HD 7850 - 2 GB

Device Type: Graphics card

Bus Type: PCI Express 3.0 x16

Graphics Engine: AMD Radeon HD 7850

Memory: 2 GB GDDR5

Core Clock: 860 MHz

Effective Memory Clock: 4.8 GHz

Memory Interface: 256-bit

Max Resolution: 4096 x 3112

Max Resolution Details: DVI: 2560 x 1600 / DisplayPort: 4096 x 2160 / HDMI: 4096 x 3112 / VGA: 2048 x 1536

Max Monitors Supported: 4

Interfaces: DVI-I (dual link) (HDCP) , DVI-D (Single-Link) (HDCP) , HDMI , 2 x Mini DisplayPort (Mini DisplayPort)

API Supported: DirectX 11, DirectCompute 11, OpenGL 4.2, OpenCL 1.2, Microsoft C++ AMP

Dimensions (WxDxH): 3.81 cm x 19.8 cm x 11.12 cm

Detailed Specification

General

Device Type: Graphics card

Bus Type: PCI Express 3.0 x16

Graphics Engine: AMD Radeon HD 7850

Core Clock: 860 MHz

Process Technology: 28 nm

Max Resolution: 4096 x 3112

Max Resolution Details: DVI: 2560 x 1600 / DisplayPort: 4096 x 2160 / HDMI: 4096 x 3112 / VGA: 2048 x 1536

Max Monitors Supported: 4

Interfaces: DVI-I (dual link) (HDCP) , DVI-D (Single-Link) (HDCP) , HDMI , 2 x Mini DisplayPort (Mini DisplayPort)

API Supported: DirectX 11, DirectCompute 11, OpenGL 4.2, OpenCL 1.2, Microsoft C++ AMP

Features: ATI CrossFire Technology, integrated HD Audio controller, AMD Eyefinity Technology, AMD HD3D Technology, AMD PowerPlay technology, AMD PowerTune technology, AMD Catalyst technology, ATI Unified Video Decoding (UVD), solid state capacitors, DTS-HD Master Audio support, Shader Model 5.0, Adaptive Anti-Aliasing, Morphological Anti-Aliasing (MLAA), Super-Sample Anti-Aliasing (SSAA), AMD HD Media Accelerator, Multi-Sample Anti-Aliasing (MSAA), AMD ZeroCore Power technology, Blu-Ray 3D Support, Double Precision Floating Point, HDR texture compression, AMD App Acceleration 2, Intelligent TDP management technology, XFX Bracket Design, accelerated multi-threading, 128-bit floating point HDR rendering, cutting-edge Quad HD display support, HDCP

Memory

Size: 2 GB

Technology: GDDR5 SDRAM

Effective Clock Speed: 4.8 GHz

Bus Width: 256-bit

System Requirements

Required Power Supply: 500 W

Additional Requirements: Adjacent PCI slot, PCIe slot, 6 pin PCI Express power connector

Miscellaneous

Included Accessories: CrossFire bridge, XFX Serial Number door hanger

Software Included: Drivers & Utilities

Width: 3.81 cm

Depth: 19.8 cm

Height: 11.12 cm

XFX AMD Radeon 7850 HD 860MHz 2GB PCI-Express 3.0 HDMI Core Edition
