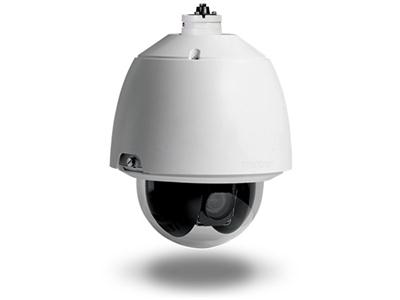

TRENDnet TV-IP450P Outdoor 1.3 MP HD PoE+ Speed Dome Network Camera (TV-IP450P)

Quicklinx:	9QTVWS00
Mfr#:	TV-IP450P

Back

Description

TRENDnet's Outdoor 1.3 MP HD PoE+ Speed Dome Network Camera, model TV-IP450P, offers powerful 20x optical zoom, low light sensor, an IP66 weather rating, and endless 360 degree PTZ functionality. Record 1.3 Megapixel HD video (1280 x 960) at 30 fps in a space saving H.264 compression format. Manage up to 32 TRENDnet cameras with included complimentary software and mobile apps.

A separate mounting bracket is required--install with TRENDnet's TV-HC400, TV-HW400, TV-HP400, or TV-HN400.

Features

Powerful zoom
20x optical zoom and 16x digital zoom combine for a total 320x zoom factor with autofocus.
Low Light Vision
Provides visibility in extremely low light conditions (0.05 Lux rated).
Endless PTZ
Endless 360° variable speed pan tilt zoom and user defined 3D zoom within the graphical user interface.
Outdoor rated
Built for extreme environments with an IP66 weather rating and an operating temperature range of -30 – 65 °C (-22 – 149 °F).
PoE+
Includes a PoE+ injector (30 Watts).

Specifications

Summary

Product Description: TRENDnet TV TV-IP450P Outdoor 1.3 MP HD PoE+ Speed Dome Network Camera - network surveillance camera

Device Type: Network surveillance camera - pan / tilt / zoom - outdoor - weatherproof

Audio: Yes: two-way audio capability

Dimensions (WxDxH): 22 cm x 22 cm x 30.5 cm

Weight: 2.4 kg

Connectivity Technology: Wired

Camera: Colour

Optical Zoom: 20 x

Max Resolution: 1280 x 960

Frame Rate (max): 30 frames per second

Motion Detection: Yes

Optical Sensor Type: CMOS - 1/3" - 1.3 MP

Minimum Illumination: 0.05 lux - colour , 0.01 lux - B&W

Focal Length Control: Motorized zoom

Focal Length: 4.7 mm - 94 mm

Focus Adjustment: Automatic, manual

Lens Iris: F/1.4-3.5

Panning Range (degree): 360

Tilting Range (degree): -5 to 90

Interfaces: Ethernet 10Base-T/100Base-TX

Voltage: PoE Plus

Features: Digital noise reduction, sharpness control, remote control, white balance, saturation control, brightness control, contrast control, image mirror, heater, manually schedule recording, auto patrol, Motion Detection Technology, microSD card slot, Privacy Mask Function, Digital Wide Dynamic Range (D-WDR), 256 preset positions, tamper-detection, notification picture to E-mail, ONVIF V2.2 (Profile S) support, snapshot function

Manufacturer Warranty: 3-year warranty

Environmental Parameters (operating): -30 °C - 65 °C; 0 - 90% (non-condensing) relative humidity

Detailed Specification

General

Device Type: Network surveillance camera

Audio Support: Yes: two-way audio capability

Connectivity Technology: Wired

Width: 22 cm

Depth: 22 cm

Height: 30.5 cm

Weight: 2.4 kg

Camera

Type: Colour - pan / tilt / zoom - outdoor - weatherproof

Digital Video Format: MJPEG, H.264

Max Digital Video Resolution: 1280 x 960

Motion Detection: Yes

Digital Zoom: 16

Exposure Range: 1 sec - 1/10000 sec

Minimum Illumination: 0.05 lux - colour , 0.01 lux - B&W

Video Capture: 1280 x 960 @ 30 fps , 704 x 480 @ 30 fps

Still Image Capture Resolution: 1280 x 960, 704 x 480

Features: Digital noise reduction, sharpness control, remote control, white balance, saturation control, brightness control, contrast control, image mirror, heater, manually schedule recording, auto patrol, Motion Detection Technology, microSD card slot, Privacy Mask Function, Digital Wide Dynamic Range (D-WDR), 256 preset positions, tamper-detection, notification picture to E-mail, ONVIF V2.2 (Profile S) support, snapshot function

Image Sensor

Type: 1.3 MP CMOS 1/3"

Lens Construction

Type: Motorized zoom

Optical Zoom: 20 x

Focal Length: 4.7 mm - 94 mm

Lens Iris: F/1.4-3.5

Focus Adjustment: Automatic, manual

Horizontal Field of View (degree): 54

Panning

Range (degree): 360

Speed (degree/sec): Up to 300

Tilting

Range (degree): -5 to 90

Speed (degree/sec): Up to 200

Interfaces

Network Interface: Ethernet 10Base-T/100Base-TX

Network Protocols: DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, IPv4, IPv6, PPPoE, SMB, IGMP, CIFS

Expansion / Connectivity

Supported Memory Cards: microSD Card

Miscellaneous

Included Accessories: Power injector

Compliant Standards: FCC, IP66

Power

Power Requirements: PoE Plus

Power Device: 22 Watt

Software / System Requirements

Software Included: Drivers & Utilities, TRENDnetVIEW Pro

OS Required: Microsoft Windows Server 2003, Microsoft Windows Vista / XP, Microsoft Windows Server 2008, Android, Apple iOS, Microsoft Windows 7 / Windows 8, Windows 8.1

Manufacturer Warranty

Service & Support: Limited warranty - 3 years

Environmental Parameters

Min Operating Temperature: -30 °C

Max Operating Temperature: 65 °C

Relative Humidity (operating): 0 - 90% (non-condensing)
