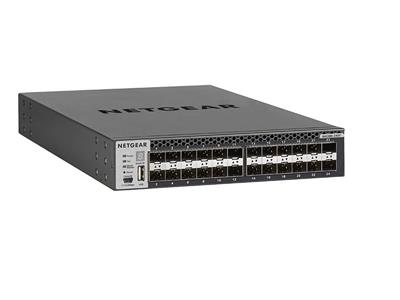

NETGEAR M4300 24-port 10G SFP+ Managed Switch (XSM4324FS-100NES)

Type:	10 Gigabit Ethernet
Ports:	24
Data Transfer Rate:	[N/A]
Managed:	Yes
POE:	No

Quicklinx:	FG2RWS00
Mfr#:	XSM4324FS-100NES

Back

Description

Half-Width 24x10G Stackable Managed Switch with 24xSFP+

Features

Robust security
Equipped with advanced encryption algorithms including 2048-bit RSA, 256-bit SHA-2, and 512-bit SHA-2, alongside RADIUS, Secure Shell v.2 (SSH2), and TACACS+ authentication methods, this switch ensures secure network access and data transmission.
High performance
With a switching fabric bandwidth of 480 Gbps and a throughput of 357 Mpps, the NETGEAR M4300-24XF delivers exceptional performance for high-demand network environments.
Comprehensive network features
Supports a wide range of networking features such as ARP support, BOOTP support, DHCP relay, DiffServ support, and more, providing flexibility and control over network traffic management.
Advanced Layer 3 switching
Layer 3 advanced switching capabilities including policy-based routing (PBR), static IP routing, and support for routing protocols like OSPFv2, OSPFv3, and RIP-2, enabling efficient network routing and segmentation.
Efficient power management
The internal power supply is 80 PLUS certified, ensuring efficient power usage with a maximum power consumption of 87.2 W, contributing to lower operational costs.

Specifications

Summary

Product Description: NETGEAR M4300-24XF - switch - 24 ports - Managed - rack-mountable

Device Type: Switch - 24 ports - L3 - Managed - stackable

Enclosure Type: Rack-mountable 1U

Subtype: 10 Gigabit Ethernet

Ports: 24 x 10GBase-X + 2 x shared 10GBase-T

Performance: Switching fabric bandwidth: 480 Gbps , Throughput: 357 Mpps

Capacity: Packet buffer size: 32 MB

MAC Address Table Size: 16K entries

Jumbo Frame Support: 9KB

Routing Protocol: RIP-2, IGMP, VRRP, OSPFv2, PIM-SM, static IP routing, PIM-DM, OSPFv3, PIM-SSM, ECMP, policy-based routing (PBR), MLD, MSTP, RSTP

Remote Management Protocol: SNMP, RMON, Telnet, SNMP 3, HTTP, HTTPS, SSH-2, CLI, SCP, SFTP, DHCP, IPv4, IPv6, RSTP, TACACS+, RADIUS

Features: BOOTP support, ARP support, auto-uplink (auto MDI/MDI-X), DoS attack prevention, DiffServ support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, SNTP support, NSF, sFlow, PVST+, UDLD, LLDP support, DHCP relay, LACP, RSPAN, PVRST, MIB, dual firmware images, CoS, PTP, STRG, AAA, UDP, PIM

Compliant Standards: IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX

Power: AC 120/230 V

Dimensions (WxDxH): 21.2 cm x 34.5 cm x 4.4 cm

Weight: 3.56 kg

Localisation: United States, Europe

Manufacturer Warranty: NETGEAR lifetime warranty

Detailed Specification

General

Device Type: Switch - 24 ports - L3 - Managed - stackable

Enclosure Type: Rack-mountable 1U

Subtype: 10 Gigabit Ethernet

Ports: 24 x 10GBase-X + 2 x shared 10GBase-T

Performance: Switching fabric bandwidth: 480 Gbps , Throughput: 357 Mpps

Capacity: Packet buffer size: 32 MB

MAC Address Table Size: 16K entries

Jumbo Frame Support: 9KB

Routing Protocol: RIP-2, IGMP, VRRP, OSPFv2, PIM-SM, static IP routing, PIM-DM, OSPFv3, PIM-SSM, ECMP, policy-based routing (PBR), MLD, MSTP, RSTP

Remote Management Protocol: SNMP, RMON, Telnet, SNMP 3, HTTP, HTTPS, SSH-2, CLI, SCP, SFTP, DHCP, IPv4, IPv6, RSTP, TACACS+, RADIUS

Encryption Algorithm: SHA, MD5, SSL 3.0, 2048-bit RSA, 256-bit SHA-2, 512-bit SHA-2, TLS 2.0

Authentication Method: RADIUS, TACACS+, Secure Shell v.2 (SSH2)

Features: BOOTP support, ARP support, auto-uplink (auto MDI/MDI-X), DoS attack prevention, DiffServ support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, SNTP support, NSF, sFlow, PVST+, UDLD, LLDP support, DHCP relay, LACP, RSPAN, PVRST, MIB, dual firmware images, CoS, PTP, STRG, AAA, UDP, PIM

Compliant Standards: IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX

Processor: : 800 MHz

RAM: 1 GB

Flash Memory: 256 MB

Expansion / Connectivity

Interfaces: 24 x 10GBase-X SFP+ , 2 x 10GBase-T RJ-45 , 1 x management (Gigabit LAN) RJ-45 , 1 x serial (RS-232) RJ-45 , 1 x console (mini-USB) , 1 x USB Type A

Power

Power Device: Internal power supply

Installed Qty: 1

Max Supported Qty: 1

Power Provided: 250 Watt

Voltage Required: AC 120/230 V

Power Consumption Operational: 87.2 Watt

80 PLUS Certification: 80 PLUS

Features: Front-to-rear airflow

Miscellaneous

MTBF: 968,447 hours

Compliant Standards: SCCP

Localisation: United States, Europe

Dimensions & Weight

Width: 21.2 cm

Depth: 34.5 cm

Height: 4.4 cm

Weight: 3.56 kg

Manufacturer Warranty

Service & Support: Limited warranty - lifetime
