In cascaded environments, the HP IP Console Switch with Virtual Media can allow an administrator to manage up to 1024 servers across two tiers from a single local console. When tiered with additional HP Console Switches with Virtual Media application installations and upgrades can be pushed to any server from the local console or remotely. HP's IP Console Switch is a key component in managing the heterogeneous data center and along with the IP Console Viewer software allows remote access to multiple servers running various operating systems. Virtual Media capability allows a removable drive or ISO image to be remotely mapped to an attached server or a remote office. An intuitive Local Console User Interface provides menus for configuration, virtual media, display, and even security and upgrades that is the same as the On Board Web Interface (OBWI) used for remote management. Implement two-factor authentication to increase security in the data center with CAC compatibility.
Improved Functionality, Performance, and Security to the Data Center
HPE KVM IP Console Switches provides Smart Card or Common Access Card (CAC) support to the server.Tiering port. For companies requiring direct remote access in every rack can now aggregate local access to the IP Console Switches for a row of racks to a single console as well as at each rack giving them two local users.New video compression allows 1600x1200 @ 60Hz or 1680 x 1050 @ 60Hz 16-bit color for remote sessions without impacting performance.Access using SSH or Telnet compliant clients.Up to (32) target server ports per switch for a wider range of rack density support.
Enhanced Remote Functionality for Quick and Easy Management
HPE KVM IP Console Switches includes full remote KVM functionality giving you remote KVM control of servers and serially attached devices at near local performance.Remote virtual media-Easily load and update software and firmware from anywhere on the LAN or WAN when used with Virtual Media Interface Adapters.iLO compatibility-Easily switch between remote KVM and iLO sessions directly from the IP Viewer software.
Robust Local Console User Interface
HPE KVM IP Console Switches displays all system-related information on the console monitor. Same look and feel as the remote On-Board Web Interface (OBWI).Programmable Scanning-An evaluation of system performance can be made by sequentially scanning any or all of the computers in the system. Programmable scanning allows you to determine which computers to include as well as the duration of the connection.Configuration NVRAM-NVRAM (non-volatile RAM) makes it easy to set configuration information using commands entered from the keyboard. The NVRAM stores the resulting configuration until a user decision is made to change the information, even if the unit loses power.Password Protection-For protection against unauthorized users, the switch box provides a local password option for security purposes as well as individual user authentication and access rights for remote users.
Flexible, Versatile Design
HPE KVM IP Console Switches may be mounted behind a HPE 1U Rackmount Keyboard, or the TFT7600 rack mounted keyboard and monitor with slide rails provided with the switch. Rails are provided for mounting the unit to the side of rack cabinets with side mounting capability.PS2 Virtual Media Interface Adapter supports servers with PS2 mouse and keyboard connection and a USB port for virtual media. This is the recommended interface adapter for virtual media.USB Virtual Media Interface Adapter supports servers without PS2 mouse and keyboard connections such as Integrity servers running Microsoft Windows.

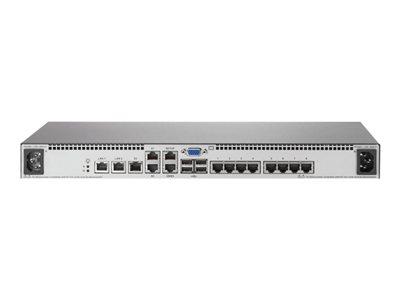

HPE IP Console G2 Switch with Virtual Media and CAC 2x1Ex16 - KVM switch - 16 ports
