Description
GIGABYTE 7 series motherboards combine a host of new and exciting technologies with the latest Intel Z77 Express Chipset, creating a unique range of motherboard designs that harness the outstanding performance of the new 3rd generation Intel® Core™ processors. With an exclusive 'All Digital' VRM design, GIGABYTE 3D Power and GIGABYTE 3D BIOS (Dual UEFI), GIGABYTE 7 series motherboards ensure exceptional power delivery and absolute control, with additional features that ensure an unrivalled experience on your next PC build.
- Support for the new INTEL 3rd Generation CPU's. On the socket 1155 platform.
- USB 3x Power Boost. Delivering greater device compatibility and faster charge times.
- Ultra Durable 4 Classic. Advanced temprature, humidity, electrostatic and power failure protection... The ultimate in reliability.
- Super Speed USB 3.0. Super fast transfer rates of up to 5 Gbps, 10x faster than USB 2.0.
- Lucid Virtu MVP. Producing faster frame rates, with sharper visuals and reduced tearing.
- Super SATA3 Native Suport. Supporting super fast 6Gbps link speeds.
- NVIDIA SLI and AMD Crossfirex. For multi display or ultimate performace gaming.
- PCIe GEN 3. Designed to take full advantage of the next generation high bandwidth graphic card solutions.
- UEFI DualBIOS™. A superior graphical BIOS interface, based on the trusted and secure GIGABYTE Dual BIOS technology.
- ON/OFF Charge Technology. Allows you to charge your iPad, iPhone or iPod even of your PC is off.
- Onboard mSATA Connector. Mount a low capcity mSATA SSD onto your motherboard to take advantage of INTEL SRT and RAPID START.

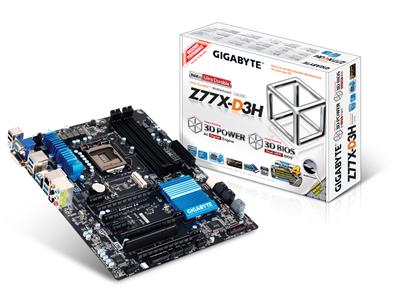

Tech Spec / Z77X-D3H
- CPU: Support for Intel Core i7, i5, i3, Pentium and Celeron 1155 processors(Go to GIGABYTE's website for the latest CPU support list.)
- Chipset: Intel Z77 Express Chipset
- Memory: 4x DDR3 1600/1333/1066 MHz memory modules * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
- Onboard Graphics: 1x D-Sub, 1x DVI-D (1920x1200 max res), 1x HDMI (1920x1200 max res)
- Audio: VIA VT2021 codec High Definition Audio 2/4/5.1/7.1-channel w/ Support for S/PDIF Out
- Multi-Graphics: Support for 2-Way AMD CrossfireX/NVIDIA SLI Technology (16x and 8x)
- LAN: 1 x Atheros GbE chip (10/100/1000 Mbit)
- Expansion Slots: 1 x PCI Express x16 slots, running at x16 / 1 x PCI Express x16 slots, running at x8 / 1 x PCI Express x16 slots, running at x4 / 3x PCI Express x1 slot / 1x PCI slots
- Storage Interface: 4 x SATA 6Gb/s connectors / 4 x SATA 3Gb/s connectors / 1 x mSATA 3Gb/s (Disables sata connector 5 when in use) / 2 x eSATA 6Gb/s on back panel
- USB: USB 3.0/2.0 : 6x on the back panel, 2x via USB brackets on headers / USB 2.0/1.1 : 2x on the back panel, 4x via USB brackets on headers
- Internal I/O Connectors: 1 x 24-pin ATX main power connector, 1 x 4-pin ATX 12V power connector, 4x SATA 6Gb/s connector, 4 x SATA 3GB/s connectors, 1 x mSATA connector, 1 x CPU fan header, 3x system fan headers, 1 x front panel header, 1 x front panel audio header, 1 x S/PDIF Out header, 2x USB 2.0/1.1 headers, 1 x USB 3.0/2.0 headers,1 x clearing CMOS jumper, 1 x TPM header, 1 x Serial port header
- Back Panel Connectors: 1 x PS/2 keyboard/mouse port, 1 x D-Sub, 1 x DVI-D, 1 x HDMI, 1 x Optical S/PDIF Out connector, 6 x USB 3.0/2.0 ports, 2 x USB 2.0/1.1 ports, 1 x RJ-45 ports, 5x audio jacks
- BIOS: 2 x 64 Mbit AMI EFI BIOS, Support for DualBIOS™
- Form Factor: ATX Form Factor; 30.5 x 24.4cm
- Warranty: 3 Year Gigabyte Warranty
