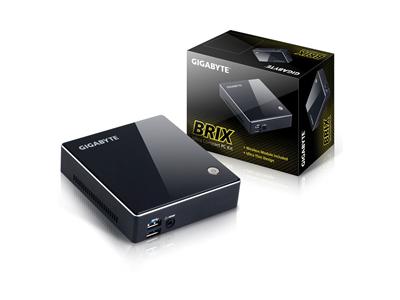

Gigabyte BRIX Celeron 2955U 1.4GHz Ultra Compact PC Kit (GB-BXCE-2955)

Quicklinx:	999SWS00
Mfr#:	GB-BXCE-2955

Description

The BRIX from Gigabyte is an ultra compact and versatile DIY PC kit. The BRIX redefines the desktop PC in terms of miniaturization with a form factor that sits in the palm of your hand. Ideal for compact HTPC builds or as a standard desktop in the home or office, the BRIX doesn't hold back in terms of display and peripheral connectivity, or raw performance.

Features

Redefining the desktop PC
Ideal for a broad range of computing applications at home or in the office, the BRIX expounds sheer simplicity and convenience. The BRIX sets a standard for desktop miniaturization that makes it perfect as a discreet HTPC/multimedia hub, an ultra-low power PC for the family, an office PC or as a digital signage unit.
Dual-display
With support for HDMI and DisplayPort, the BRIX can power two displays simultaneously, making a perfect choice as a high productivity PC in professional and home environments, or in any number of industrial and commercial multi-display applications.
VESA support
The BRIX can easily be mounted behind a monitor or HDTV making it discreetly hidden from view. This makes it simple and effective way to turn any VESA-compliant display or TV into a full-featured PC or digital signage unit.

Specifications

Summary

Product Description: Gigabyte BRIX GB-BXCE-2955 (rev. 1.0) - Ultra Compact PC Kit - Celeron 2955U 1.4 GHz - 0 GB - no HDD

Type: PC barebone - Ultra Compact PC Kit

Processor: 1 x Intel Celeron 2955U / 1.4 GHz (Dual-Core)

Cache Memory: 2 MB

Cache Per Processor: 2 MB

RAM: 0 GB (installed) / 16 GB (max) - DDR3L SDRAM

Storage Controller: SATA

Hard Drive: No HDD

Optical Storage: No optical drive

Graphics Controller: Intel HD Graphics

Audio Output: Stereo - integrated

Networking: GigE, 802.11b/g/n, Bluetooth 3.0, Bluetooth 4.0

Power: AC 120/230 V

OS Provided: No operating system

Dimensions (WxDxH): 10.76 cm x 11.44 cm x 2.99 cm

Detailed Specification

General

Type: PC barebone

Product Form Factor: Ultra Compact PC Kit

Processor / Chipset

CPU: Intel Celeron 2955U

Clock Speed: 1.4 GHz

Number of Cores: Dual-Core

CPU Qty: 1

Max CPU Qty: 1

Cache Memory

Installed Size: 2 MB

Cache Per Processor: 2 MB

RAM

Installed Size: 0 GB / 16 GB (max)

Technology: DDR3L SDRAM

Form Factor: SO-DIMM 204-pin

Slots: 2 (Total) / 2 (empty)

Hard Drive

Type: No HDD

Storage Controller

Type: 1 x SATA - integrated

Channel Qty: 1

Optical Storage

Type: No optical drive

Monitor

Monitor Type: None.

Graphics Controller

Type: Integrated

Graphics Processor: Intel HD Graphics

Video Interfaces: HDMI, DisplayPort

Max Monitors Supported: 2

Audio Output

Type: Integrated

Sound Output Mode: Stereo

Networking

Ethernet Controller: Realtek RTL8111G

Wireless LAN Supported: Yes

Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Bluetooth 3.0, Bluetooth 4.0

Compliant Standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Bluetooth 3.0, Bluetooth 4.0

Expansion / Connectivity

Slots: 1 (total) / 1 (free) x mSATA , 2 (total) / 2 (free) x SO-DIMM 204-pin , 1 (total) / 0 (free) x PCIe Half Mini Card

Interfaces: 4 x USB 3.0 (2 front, 2 rear) , 1 x HDMI , 1 x Mini DisplayPort , 1 x LAN (Gigabit Ethernet) , 1 x SPDIF output/headphones (1 in front)

Miscellaneous

Included Accessories: VESA wallmount adapter

Theft/Intrusion Protection: Security lock slot (cable lock sold separately)

VESA Mounting Interface: 100 x 100 mm, 75 x 75 mm

Power

Device Type: Power adapter

Voltage Required: AC 120/230 V

Operating System / Software

OS Provided: No operating system

Dimensions & Weight

Width: 10.76 cm

Depth: 11.44 cm

Height: 2.99 cm

Gigabyte BRIX Celeron 2955U 1.4GHz Ultra Compact PC Kit
