Description

• Get ready for 32 nm AMD AM3+ CPU

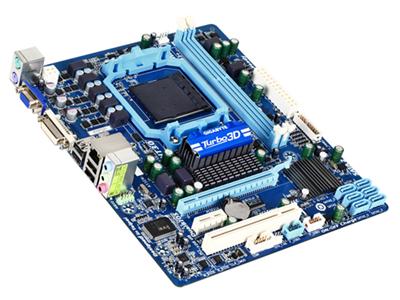

  Gigabyte's AMD motherboards are ready to support 32 nm AMD AM3+ multi-core processors, delivering the very best platform for multitasking, multimedia and high performance gaming.

• On/off charge technology

  Gigabyte on/off charge technology allows you to charge your iPhone, iPad and iPod touch regardless of whether your PC is on, in standby mode or even off. A derivative of Gigabyte's highly acclaimed 3x USB power feature, on/off charge enables devices to draw more current from Gigabyte motherboard USB ports than standard USB ports allow, so that charging from your PC can be as fast as with a charger

• Supports 45 nm AMD AM3 CPU

  This motherboard designs with split power plane, 4+1 phase VRM to support AMD the 45 nm AM3 Phenom II/Athlon II processors, delivering the great performance enchantment to system and ultimate scalability hardware expending.

• EC AOD-ACC support

  EC AOD-ACC is described as embedded controller for AMD OverDrive- Advanced Clock Calibration, which is the newest feature comes from AMD SB750/ SB710 SouthBridge chip to be overclocked through BIOS setting or AMD OverDrive utility further than it was previously possible.

• 3x USB power boost

  Gigabyte motherboards feature a 3x USB power boost, delivering greater compatibility and extra power for USB devices. Gigabyte's unique USB power design is also able to efficiently regulate output over the full voltage range, which greatly enhances USB device compatibility. In addition, dedicated lower resistance fuses ensure lower voltage drops, and provide more stable and plentiful power delivery.

• 108 dB signal-to-noise ratio playback

  Gigabyte's motherboards feature higher capability audio solution with 108 dB signal-to-noise ratio (SNR) playback quality to deliver high-performance, multi-channel HD audio. SNR is a comparison of the amount of signal to the amount of noise such as hiss present in the signal. A higher SNR equals a better audio experience. For example, 108 dB is a high audio specification, as this means the audio signal is 108 dB higher than the level of the noise.

• DualBIOS 3 TB+ HDD support

  Hybrid EFI technology combines the benefits of Gigabyte's mature BIOS platform including stability and compatibility with 3rd party products with 3 TB+ HDD support from EFI technology, allowing Gigabyte to offer the best of both worlds through a quick and easy BIOS update. Gigabyte DualBIOS is a patented technology that automatically recovers BIOS data when the main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, Gigabyte DualBIOS allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating. In addition, Gigabyte DualBIOS supports 3 TB+ (terabyte) hard drive booting without the need for partitioning, and enables more data storage on a single hard drive.

• Ultra Durable 2 - classic

  Gigabyte was the motherboard manufacturer to realize the importance of using only the highest quality components for the critically important CPU VRM zone of the motherboard which is responsible for delivering stable power to the CPU.

• Supports DDR3 1333+

  Delivering native support for DDR3 memory up to 1333 MHz, Gigabyte Ultra Durable 3 series motherboards allow users to easily reach higher memory frequencies at lower voltages; achieving higher memory performance with lower power consumption to run even the most memory intensive applications such as high-definition video and 3D games with ease.

• EasyTune6

  Gigabyte has completely redesigned EasyTune6 from the ground up to make it easier than ever to manage and monitor your hardware resources as well as tweak your system settings in order to achieve maximum system performance. Whether you are an overclocking enthusiast, or a computer novice, EasyTune6 provides the tools you need to quickly and effortlessly fine tune your system.

• ErP Lot 6 support

  The ErP (also known as Energy-Related Products Directive) is part of the European Union's environmental regulations policy. It is based on concern for the environmental as the proliferation of electronic devices continues, and how to improve energy efficiency for a better and greener life. Gigabyte supports ErP and produces motherboards that help you effectively improve system efficiency.
