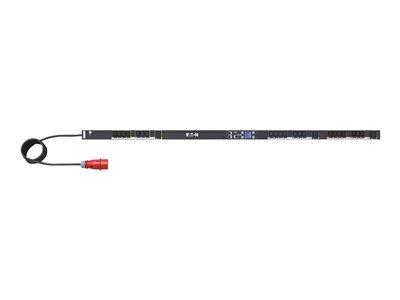

Eaton ePDU SW 0U (309 16A 3P) 21XC13:3XC19 (ESWB20)

Quicklinx:	CBDDWS00
Mfr#:	ESWB20

Description

Designed for data centers needing remote site management, the Switched ePDU provides remote power monitoring of both voltage and current. The current is also displayed on a local two-digit current meter. The control interface is highly customizable with multiple functions and flexibility to send either SNMP traps or e-mail alerts.

Features

Efficient power distribution
The Eaton ePDU Switched model is designed for efficient power distribution, ensuring your PC and other devices remain powered with reliability.
Remote management capability
Equipped with an RS-232 remote management interface, this power distribution unit allows for convenient remote management, enabling adjustments and monitoring without physical presence.

Specifications

Summary

Product Description: Eaton ePDU Switched - power distribution unit

Device Type: Power distribution unit - rack-mountable

Rack Size: 0U

Input Wiring: 3-phase

Input Connectors: 1 x power IEC 60309 16A

Output connectors: 21 x power IEC 60320 C13 , 3 x power IEC 60320 C19

Networking: Ethernet 10/100, RS-232

Dimensions (WxDxH): 5.2 cm x 5.3 cm x 160.4 cm

Detailed Specification

General

Device Type: Power distribution unit - rack-mountable

Height (Rack Units): 0U

Power Device

Input Wiring: 3-phase

Input Connectors: 1 x power IEC 60309 16A

Power Output Connectors Details: 21 x power IEC 60320 C13 , 3 x power IEC 60320 C19

Networking

Remote Management Interface: Ethernet 10/100, RS-232

Expansion / Connectivity

Interfaces: 1 x management (Ethernet) - RJ-45 , 1 x management (RS-232) - RJ-45 , 1 x cascading - RJ-45 , 1 x USB - 4 pin USB Type A

Miscellaneous

Cables Included: Power cable - integrated

Features: LCD display, voltage monitoring, current meter, vertical orientation, firmware upgradable

Environmental Parameters

Min Operating Temperature: 0 °C

Max Operating Temperature: 60 °C

Dimensions & Weight

Width: 5.2 cm

Depth: 5.3 cm

Height: 160.4 cm

Eaton ePDU SW 0U (309 16A 3P) 21XC13:3XC19
