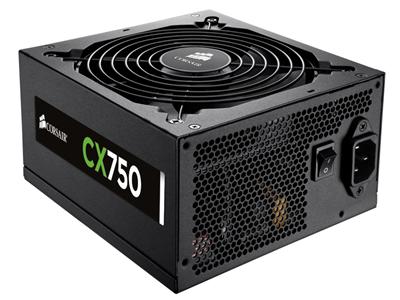

Corsair 750W CX Builder Series 80PLUS Bronze PSU (CP-9020015-UK)

Quicklinx:	8758WS00
Mfr#:	CP-9020015-UK

Back

Description

The CX750 is 80 PLUS Bronze certified for excellent efficiency, and like all the CX series PSUs, is an ideal solution for those who want a no-compatibility. With a temperature controlled fan for low noise levels, long cables with tons of connectors for flexibility, and fully sleeved cables, the CX750 is a great choice at a great price.

Specifications

Summary

Product Description: CORSAIR CX750 - power supply - 750 Watt

Device Type: Power supply - active Power Factor Correction (PFC) - internal

Specification Compliance: ATX12V 2.31/ EPS12V 2.91

80 PLUS Certification: 80 PLUS Bronze

Weight: 3.27 kg

Localisation: United Kingdom

Input Voltage: AC 90-264 V

Output Voltage: +3.3, +5, ±12 V

Power Capacity: 750 Watt

Output Current: +3.3V - 25 A , +5V - 25 A , +12V - 62 A , -12V - 0.8 A , +5VSB - 3 A

Output connectors: 1 x power 24 pin ATX with detachable 4 pin section , 1 x power 8 pin EPS12V , 4 x 8 pin PCI Express power with detachable 2 pin section , 1 x 4 PIN internal power , 8 x 15 pin Serial ATA power , 1 x 4 PIN mini-power connector

Dimensions (WxDxH): 15 cm x 16 cm x 8.6 cm

Manufacturer Warranty: 3-year warranty

Detailed Specification

General

Device Type: Power supply - active Power Factor Correction (PFC) - internal

Specification Compliance: ATX12V 2.31/ EPS12V 2.91

PSU Form Factor: ATX

Localisation: United Kingdom

Power Device

Input Voltage: AC 90-264 V

Frequency Required: 47 - 63 Hz

Power Output Connectors Details: 1 x power 24 pin ATX with detachable 4 pin section , 1 x power 8 pin EPS12V , 4 x 8 pin PCI Express power with detachable 2 pin section , 1 x 4 PIN internal power , 8 x 15 pin Serial ATA power , 1 x 4 PIN mini-power connector

Output Voltage: +3.3, +5, ±12 V

Power Capacity: 750 Watt

Output Current: +3.3V - 25 A , +5V - 25 A , +12V - 62 A , -12V - 0.8 A , +5VSB - 3 A

80 PLUS Certification: 80 PLUS Bronze

Miscellaneous

MTBF: 100,000 hours

Features: Sleeved cables, over current protection, over voltage protection, undervoltage protection, short-circuit protection, single 12V rail, non-modular

Manufacturer Warranty

Service & Support: Limited warranty - 3 years

Dimensions & Weight

Width: 15 cm

Depth: 16 cm

Height: 8.6 cm

Weight: 3.27 kg

Dimensions & Weight (Shipping)

Shipping Width: 29 cm

Shipping Depth: 21.6 cm

Shipping Height: 13 cm

Shipping Weight: 3.53 kg
