Description

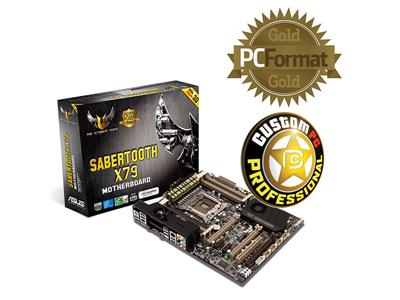

NEW! Asus SABERTOOTH X79, Intel X79 Motherboard, ATX, Intel® Socket 2011 for 2nd Generation Intel® Core™ i7 Processor Extreme Edition.
ASUS has forged the TUF series to serve the needs of professionals who demand the sturdiest, most reliable gear. Superior components are subjected to military grade testing and guarantee reliability. Meanwhile, the exclusive Thermal Armor shield with smart heat funnelling and the Thermal Radar temperature detection assure that the TUF X79 motherboard remains stable under extensive loading via the most intelligent cooling possible. Creative engineering has also created a unique look that PC modders will be proud to show off.
New generation Thermal Armor kicks cooling up a notch with dual integrated Turbo Engine Fans. This enhances the original TUF thermal design, helping direct heat away from MOS area components and out the case via the rear I/O section. Special heat pipes propel dissipation from critical components and make sure temps stay low across the board. The TUF Thermal Radar monitors temps in critical parts of the motherboard in real time, automatically adjusting fan speeds to sure the system maintains high stability without overheating. It consists of multiple sensors for various components on the motherboard, giving users the ability to monitor each one individually. The Thermal Radar automatically calculates ideal fan speeds based on different parameters selected by users for each component, keeping everything cooler and longer lasting.
All new digital CPU and DRAM power controls work perfectly together to match digital power signal (SVID) requests from the CPU, with ultra-fast sensing and response efficiently delivering precision power. Accurate delivery reduces waste and provides more stable CPU Vcore voltages. With highly programmable digital controllers on board, users can adjust CPU and DRAM PWM voltages and frequencies for various scenarios with accurate input through UEFI BIOS tuning or the exclusive ASUS interface. This proprietary design provides ultra-precise voltage control for better efficiency, stability and performance.
ASUS Unique Selling Points
Ultimate COOL!" Thermal Solution
- TUF Thermal Armor
- TUF Thermal Radar
TUF ENGINE!" Power Design
- 8+2+2+2 Digital Phase Power Design
- TUF Components (Choke, Cap & MOSFET; certified by military-standard)
- ASUS DIGI+ Power Control Utility
Safe & Stable!" Guardian Angel
Key specification
- Form Factor: ATX, 12"x 9.6" (30.5cm x 24.4cm)
- CPU: Intel® Socket 2011 for 2nd Generation Intel® Core™ i7 Processor Extreme Edition, Supports Intel® Turbo Boost Technology 2.0
- Chipset: Intel® X79 Express Chipset
- Memory: 8 x DIMM, Max. 64GB, DDR3 1866/1600/1333/1066 MHz, Non-ECC, un-buffered Quad channel Memory
- Expansion Slots: 2 x PCI Express 3.0 x16 slots (Dual@x16/x16), 1 x PCI Express 3.0 x16 slot (PCIe x16_3@x8 speed), 2 x PCI Express 2.0 x1 slots, 1 x PCI slot
- Multi-GPU: Supports NVIDIA® 3-Way SLI™ and AMD® Quad-GPU CrossFireX™ Technology
- Storage 1: Intel® X79 Express Chipset: 2 x SATA 6Gb/s ports with RAID 0,1,5 and 10 support (brown), 4 x SATA 3Gb/s ports with RAID 0,1,5 and 10 support (black)
- Storage 2: Marvell® 9128 SATA controller: 2 x SATA 6Gb/s ports (gray)
- Storage 3: ASMedia® 1061 SATA controller: 1 x Power eSATA 6Gb/s port (green), 1 x eSATA 6Gb/s port (red)
- LAN: Intel® 82579V Gigabit LAN controller
- Audio: Realtek® ALC892 8-Channel High Definition Audio CODEC
- USB: 3 x ASMedia USB 3.0 controllers: 2 x USB 3.0 ports at mid-board for front panel support, 4 x USB 3.0 ports at back panel (blue)
- USB: Intel®X79 Express Chipset: 14 x USB 2.0/1.1 ports (8 ports at mid-board, 6 ports at back panel)
- IEEE 1394: VIA® VT6315N controller supports 1 x IEEE 1394a port (back panel)
- BT & WiFi: NONE
- Bios Features: 64 Mb Flash ROM, UEFI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.6, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
- Manageability: WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
*This motherboard is ready to support PCIe 3.0 SPEC
Back Panel I/O Ports
- 1 x PS/2 Keyboard/Mouse combo port
- 1 x Optical S/PDIF Output port
- 1 x USB BIOS Flashback Button
- 1 x Power eSATA 6Gb/s port (green)
- 1 x eSATA 6Gb/s port (red)
- 1 x IEEE1394a port
- 1 x LAN (RJ45) port
- 4 x USB 3.0/2.0 ports (blue)
- 6 x USB 2.0/1.1 ports
- 8-channel Audio I/O ports
Internal I/O Connectors
- 1 x USB 3.0/2.0 connector supports additional 2 USB 3.0/2.0 ports (19-pin; moss green)
- 4 x USB 2.0/1/1 connectors support additional 8 USB 2.0/1.1 ports
- 4 x SATA 6Gb/s connectors (2 x brown; 2 x gray)
- 4 x SATA 3Gb/s connectors (black)
- 1 x CPU Fan connector (4-pin)
- 1 x CPU OPT Fan connector (4-pin)
- 4 x Chassis Fan connectors (4-pin)
- 1 x Assistant Fan connector (4-pin)
- 1 x PCH Fan connector (4-pin)
- Front panel audio connector(AAFP)
- 1 x COM connector
- 1 x S/PDIF Out header
- 24-pin EATX Power connector
- 8-pin EATX 12V Power connector
- System Panel (Q-Connector)
- 1 x MemOK! button
- 1 x Clear CMOS jumper
In The Box
- 4 x Serial ATA 6Gb/s cables
- 2 x Serial ATA 3Gb/s cables
- 1 x ASUS SLI bridge connector
- 1 x ASUS Q-Shield
- 1 x 2 in 1 Q-connector
- 1 x I/O Cover Fan
- 1 x TUF Certification card
- 1 x TUF 5 Year Warranty manual (by region)
- User's manual
- Drivers
- Anti-virus software (OEM version)
- ASUS Update
- ASUS Utilities
