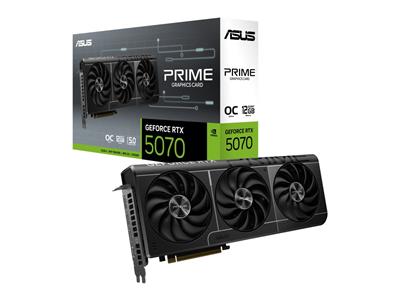

Asus PRIME GeForce RTX 5070 12GB GDDR7 - PRIME-RTX5070-O12G (90YV0M10-M0NA00)

Graphics Processor Manufacturer:	NVIDIA
Graphics Processor:	NVIDIA GeForce RTX 5070
Interface:	PCI Express 5.0

Quicklinx:	J3N1WS00
Mfr#:	90YV0M10-M0NA00

Back

Description

Experience Primal performance with the Prime GeForce RTX 5070, an SFF-ready graphics card featuring a 2.5-slot design for expansive compatibility, enhanced by a triple-fan setup for supreme airflow design for supreme cooling.

Features

Robust video memory
With 12 GB of GDDR7 SDRAM and a memory speed of 28 Gbps, this graphics card ensures swift data processing and a seamless gaming experience.
Advanced performance capabilities
The graphics card features 6144 CUDA Cores and achieves up to 2557 MHz boost clock speed, offering substantial graphical processing power.
Versatile connectivity options
Featuring three DisplayPort and one HDMI outputs, this card offers flexible connectivity to multiple monitors, enhancing productivity and gaming immersion.
Enhanced cooling technology
The card comes with a 2.5-slot Fan Cooler and Dual Ball Bearing Fans, ensuring effective thermal management while maintaining quiet operation.
Integrated NVIDIA technologies
Includes NVIDIA DLSS 4, Reflex 2, and Broadcast features, maximizing performance and enhancing the user experience for gamers and content creators.

Specifications

Summary

Product Description: ASUS PRIME GeForce RTX 5070 12GB - OC Edition - graphics card - GeForce RTX 5070 - 12 GB

Device Type: Graphics card

Bus Type: PCI Express 5.0

Graphics Engine: NVIDIA GeForce RTX 5070 - up to 1005 TOPS

Memory: 12 GB GDDR7

Memory Speed: 28 Gbps

Boost Clock: 2557 MHz

Boost Clock (OC): 2587 MHz

CUDA Cores: 6144

Memory Interface: 192-bit

Max Resolution: 7680 x 4320

Max Monitors Supported: 4

Interfaces Details: 3 x DisplayPort , HDMI

API Supported: OpenGL 4.6

Dimensions (WxDxH): 5 cm x 30.4 cm x 12.6 cm

Detailed Specification

General

Device Type: Graphics card

Bus Type: PCI Express 5.0

Graphics Engine: NVIDIA GeForce RTX 5070

Boost Clock: 2557 MHz

Boost Clock (OC): 2587 MHz

CUDA Cores: 6144

VR Ready: Yes

Max Resolution: 7680 x 4320

Max Monitors Supported: 4

Interfaces Details: 3 x DisplayPort , HDMI

API Supported: OpenGL 4.6

Features: 5th gen Tensor Cores, 4th gen Ray Tracing Cores, NVIDIA DLSS 4, NVIDIA Reflex 2, NVIDIA Avatar Cloud Engine (ACE), NVIDIA G-Sync ready, Nvidia Studio, NVIDIA Multi Frame Generation, NVIDIA Frame Warp, Nvidia Broadcast, 9th Gen NVIDIA Encoder, 2.5-slot Fan Cooler, 0dB Technology, Dual ball Bearing Fans, vented backplate, MaxContact technology, phase-change thermal pad, ASUS GPU Guard, protection plate, stainless steel mounting bracket, Dual Bios, AUTO-EXTREME technology, NVIDIA GeForce SFF-Ready, HDCP

Memory

Size: 12 GB

Technology: GDDR7 SDRAM

Memory Speed: 28 Gbps

Bus Width: 192-bit

Performance

NPU Performance Up To (TOPS): 1005 TOPS

System Requirements

Required Power Supply: 750 W

Additional Requirements: 16 pin PCI Express power connector, 2 adjacent PCI slots

Miscellaneous

Included Accessories: 2x8-pin to 12VHPWR cable, hook-and-loop fastener, thank you card, graphics card support bracket

Software Included: ASUS GPU Tweak III, MuseTree

Compliant Standards: HDCP 2.3, DisplayPort 2.1b

Width: 5 cm

Depth: 30.4 cm

Height: 12.6 cm
